Brilliant Control 3-way Wiring Guide

It is possible to install Brilliant Controls in a "3-way" configuration with a regular rocker as the "other" switch. Please reference the wiring diagrams below to see how to wire your Brillant Home Control with a regular rocker.



Brilliant Control 3-way Wiring Guide - Line side Rocker

Brilliant Control 3-way Wiring Guide - Load side Rocker

Brilliant Control 3-way Wiring Guide - All Controls

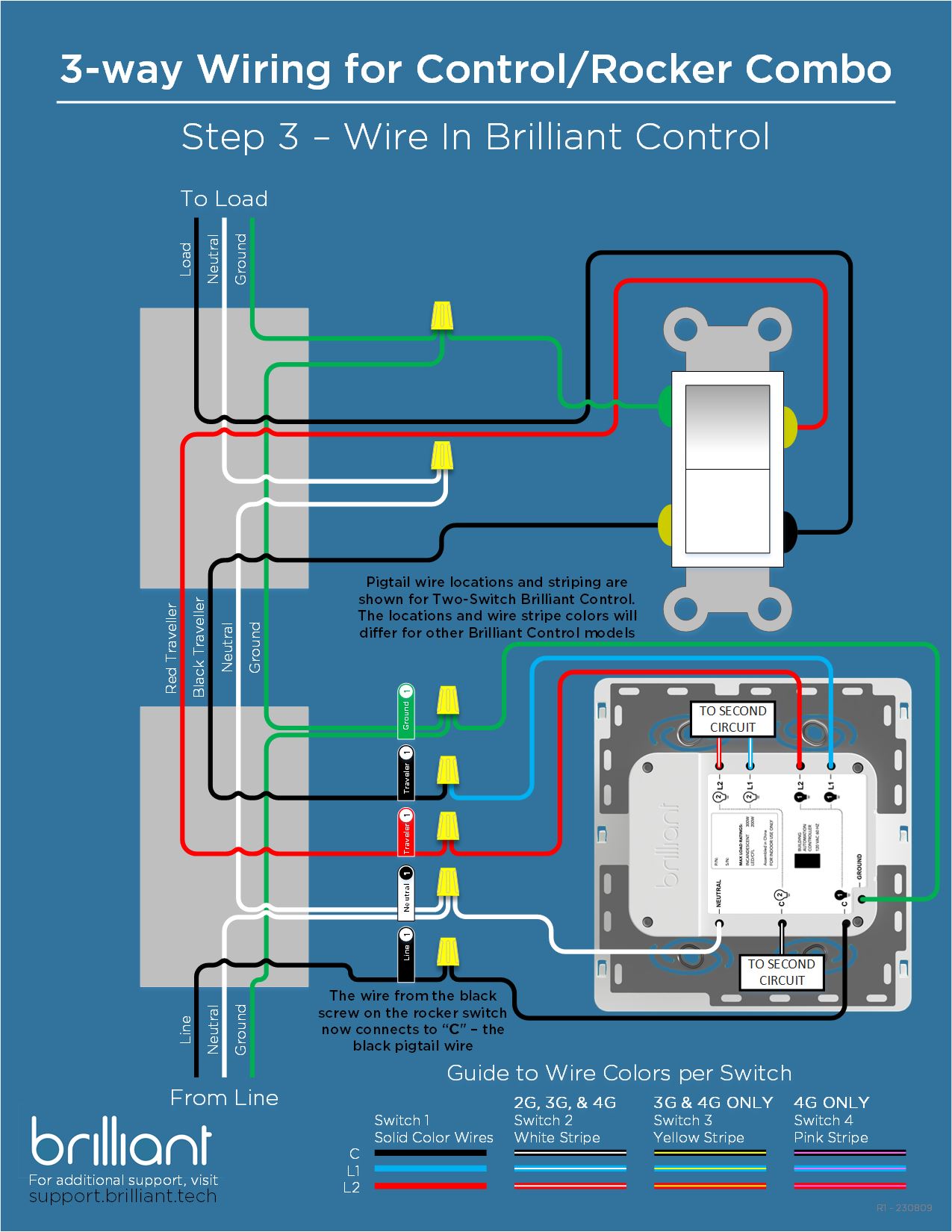

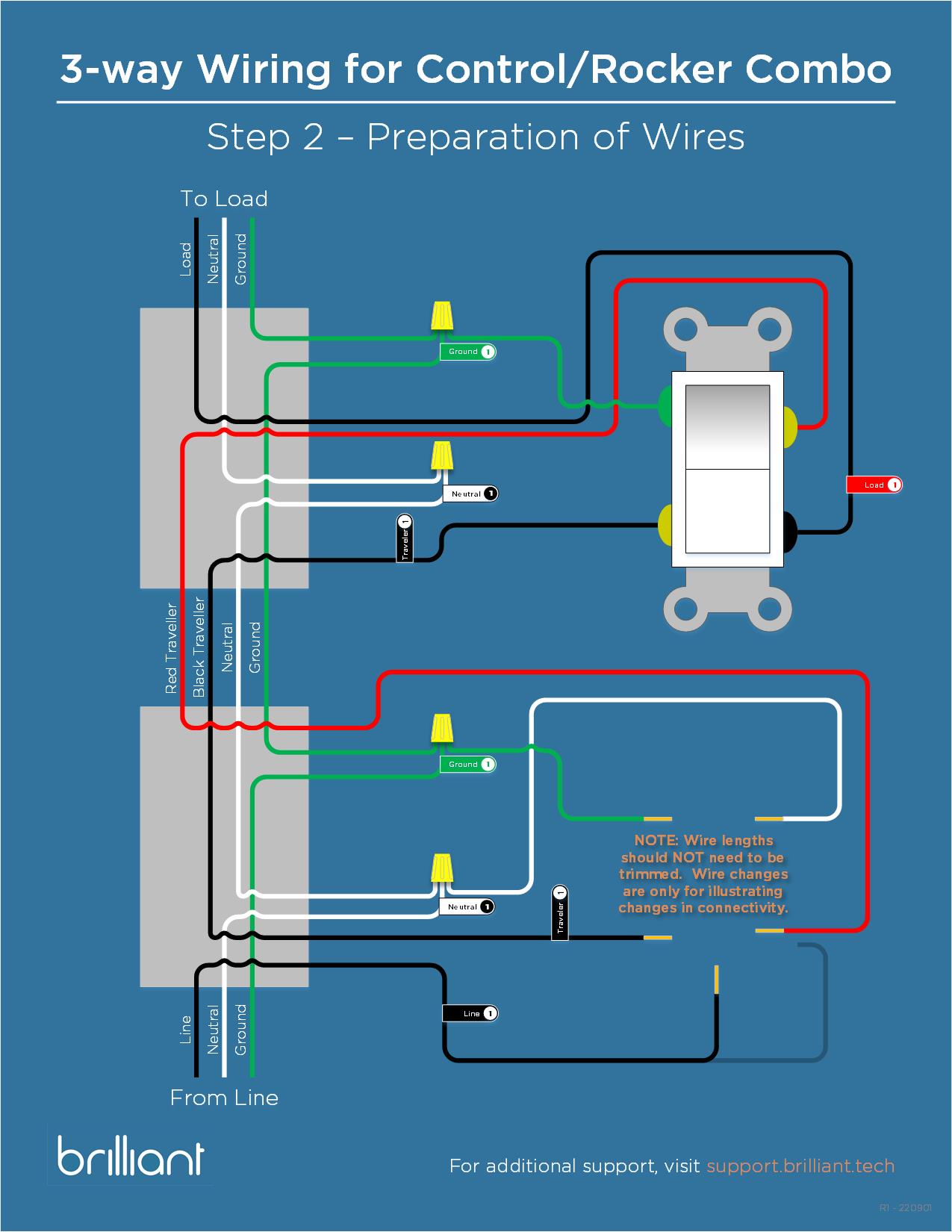

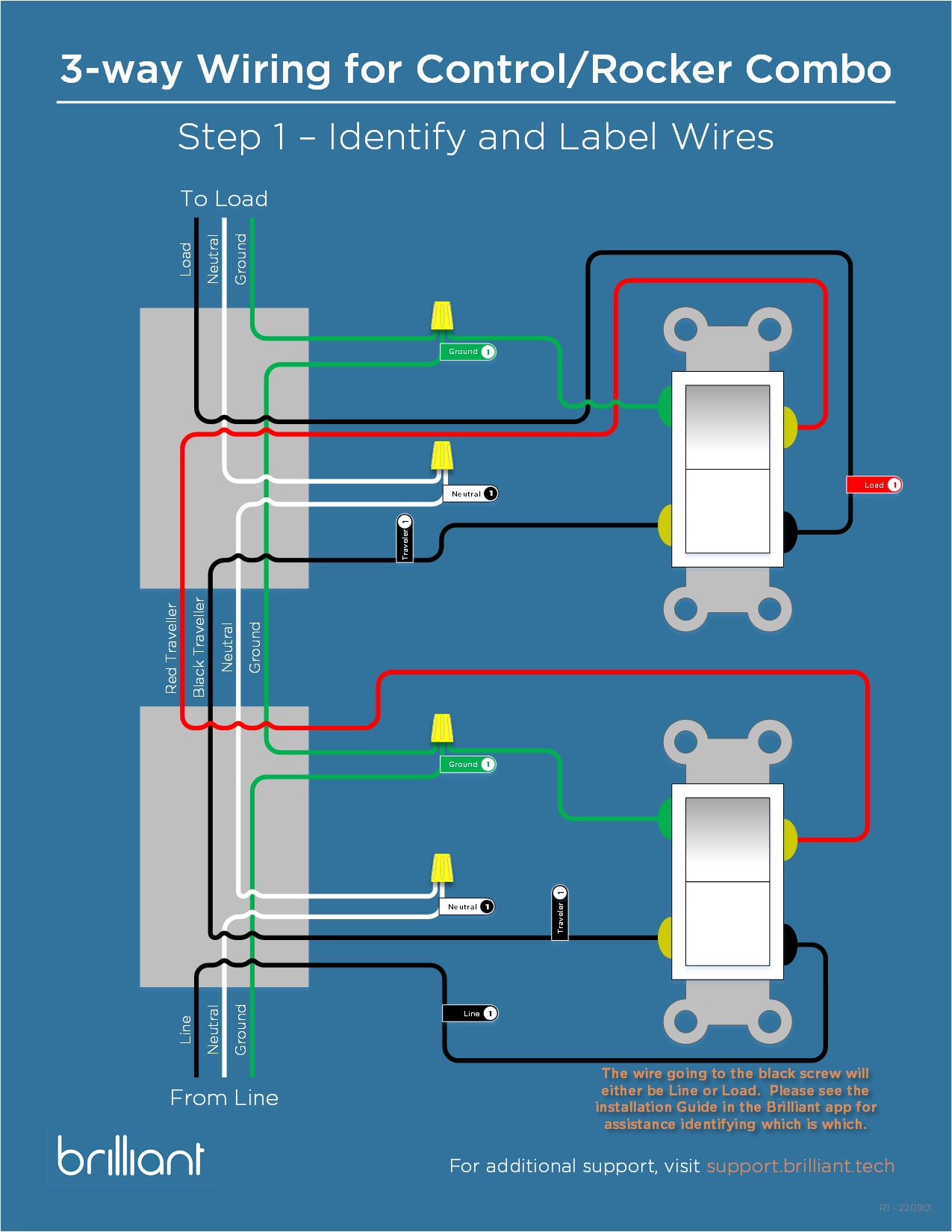

3-way Wiring Guide - Line Side Rocker



Gangbox with pigtails

Gangbox without pigtails








3-way Wiring Guide - Load Side Rocker



Gangbox with Pigtails

Gangbox without pigtails

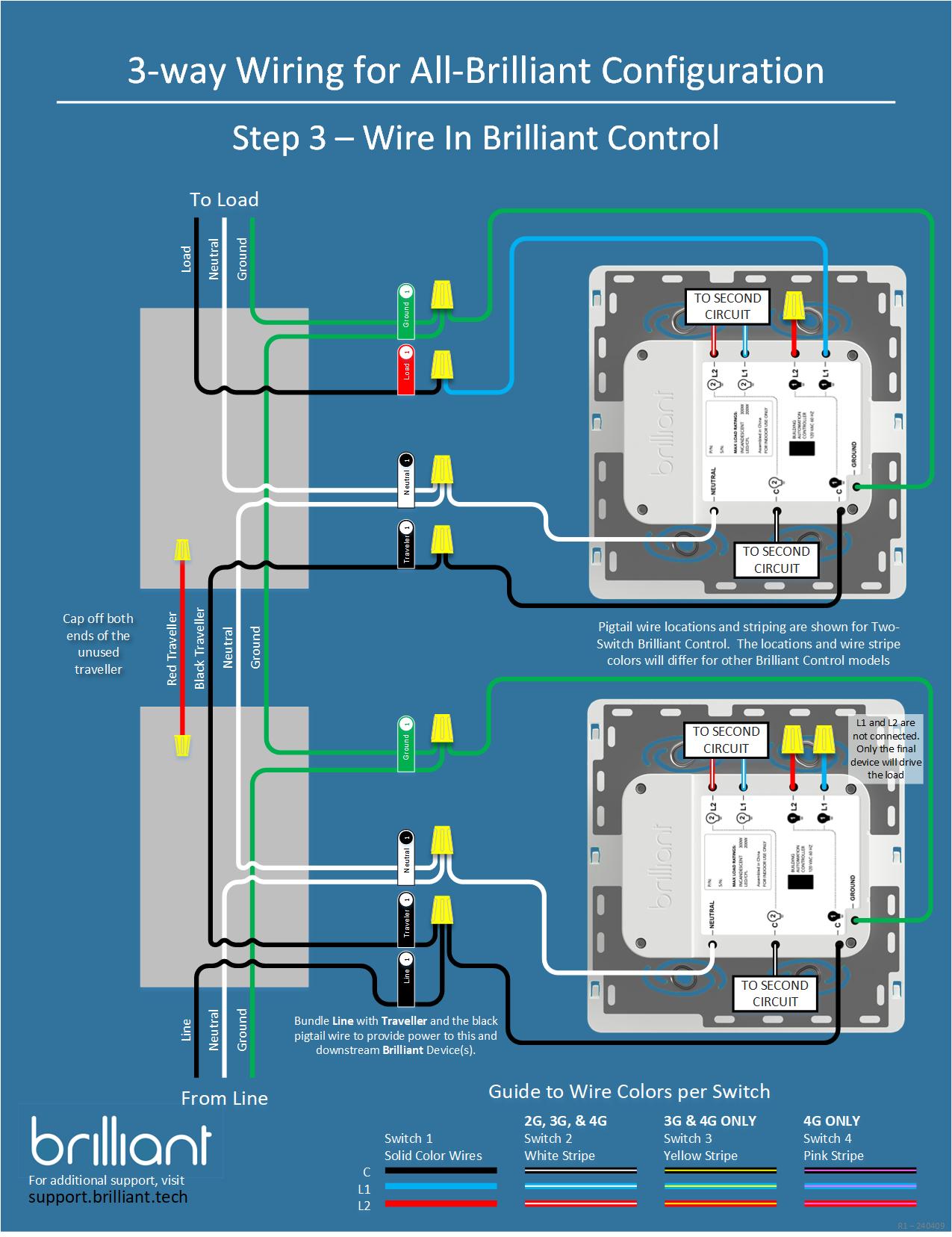

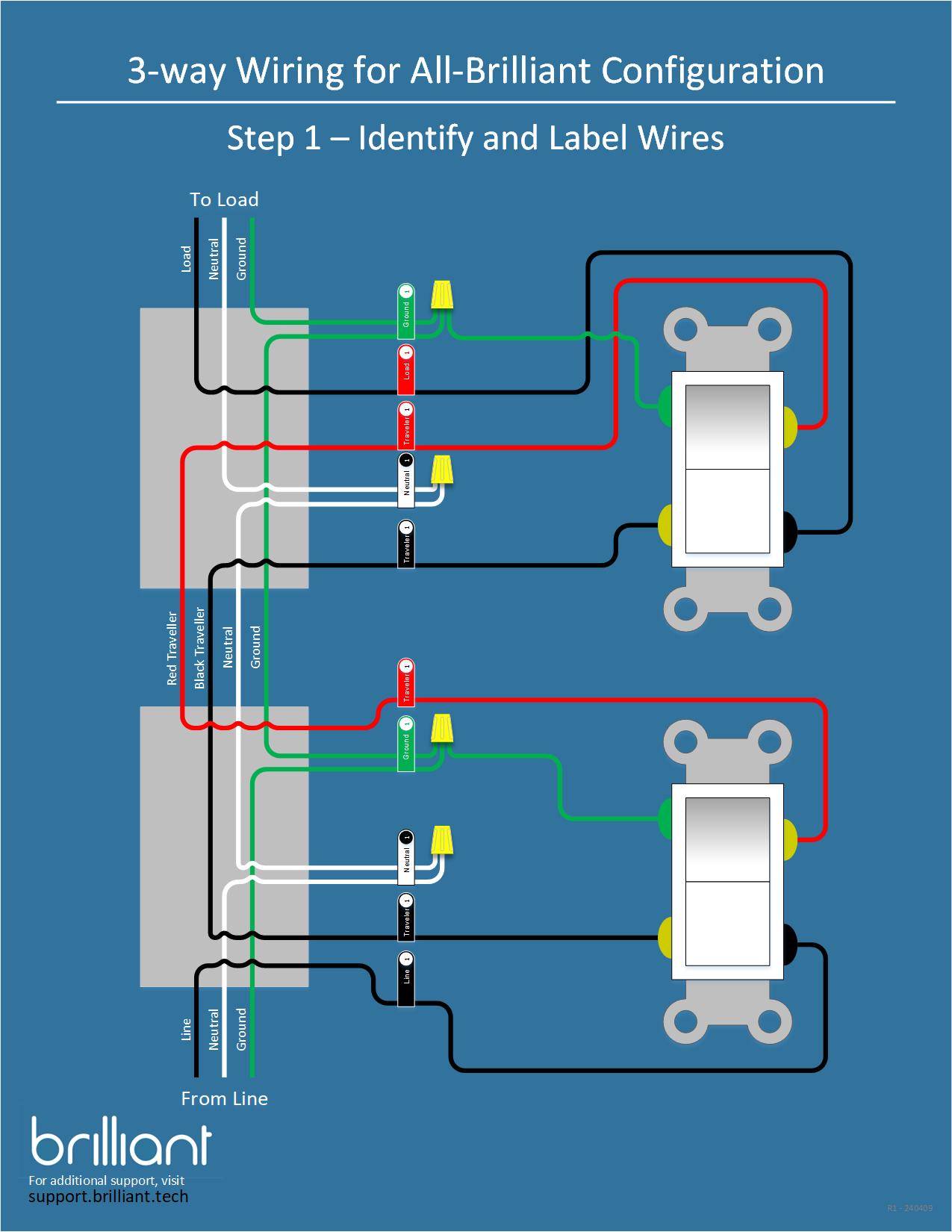

3-way Wiring Guide - All Controls
