Additional instructions on connecting LiftMaster Security+ 2.0 Wall Controllers



Genie has provided the instructions below which detail methods of connecting to LiftMaster Security+ 2.0 wall controllers. Please reach out to Genie support for any questions.

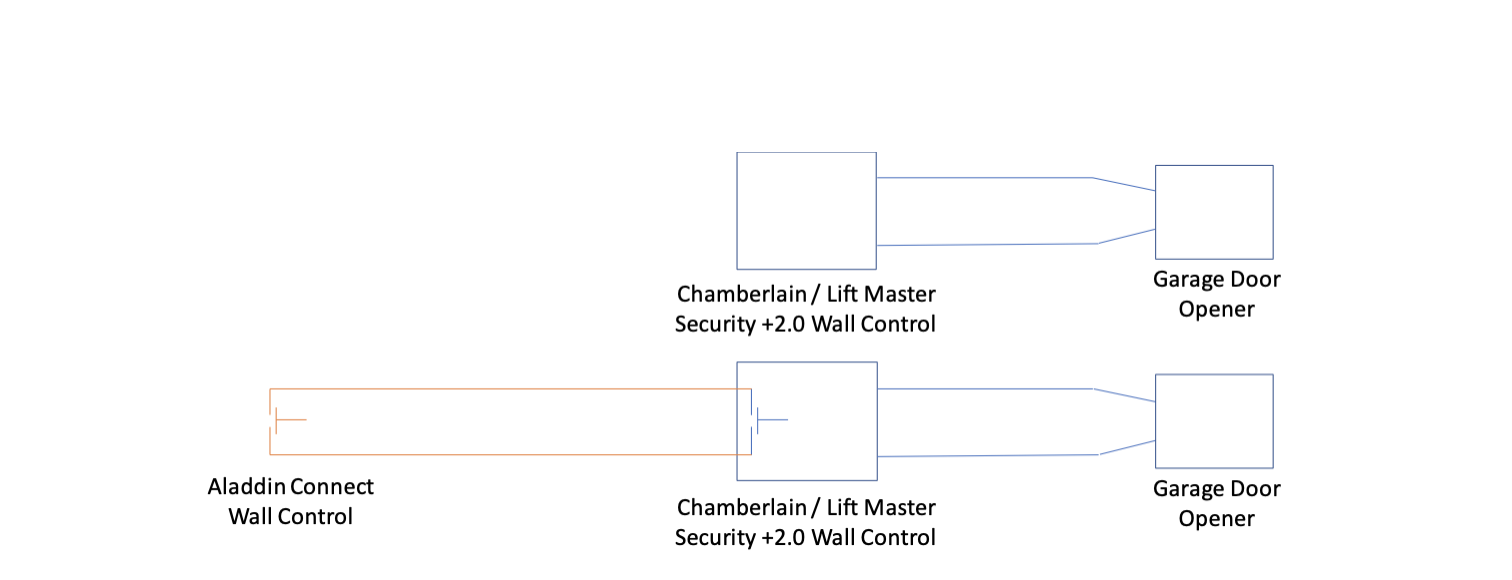

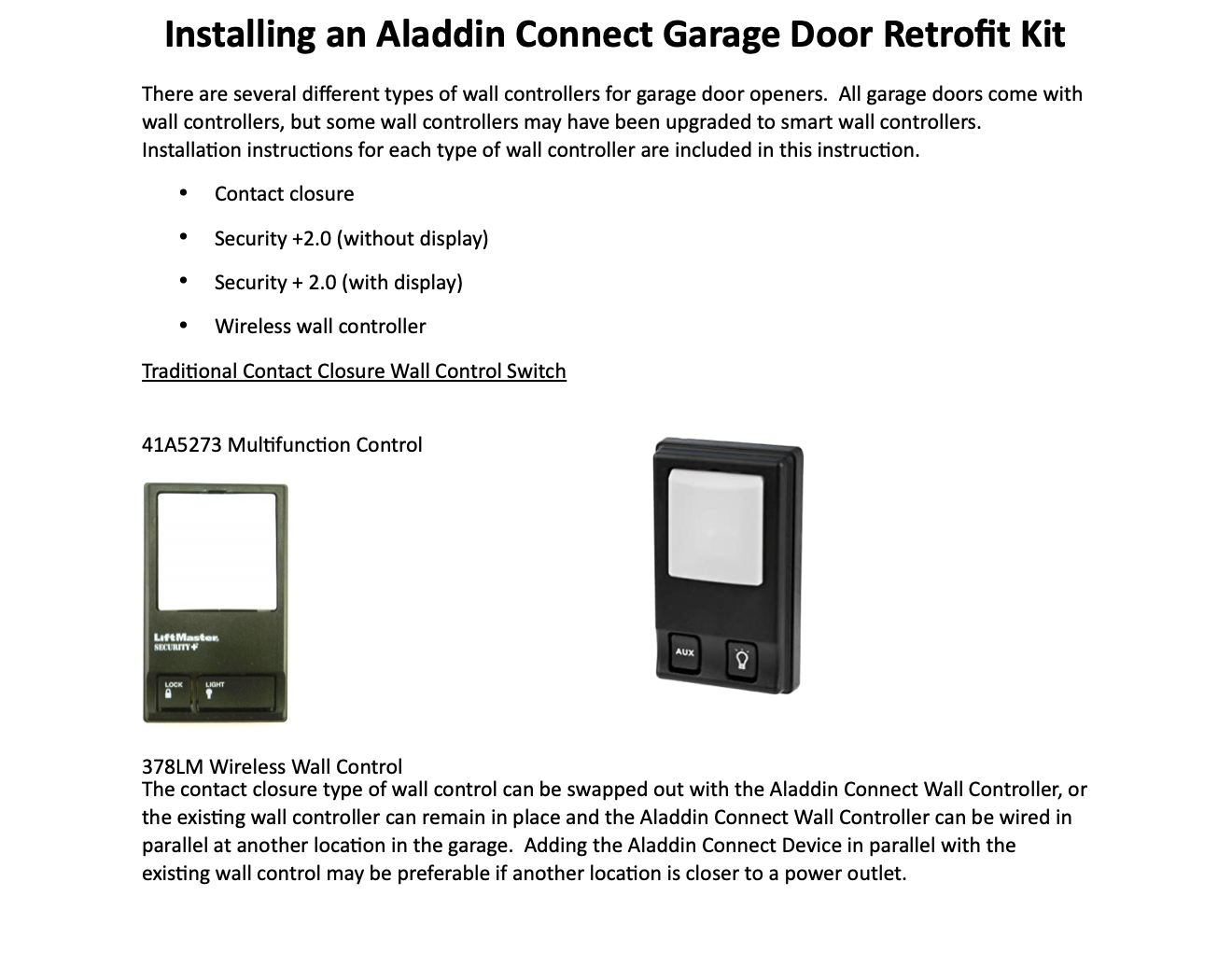

Screen Shot 2023-11-30 at 15.05.46.png

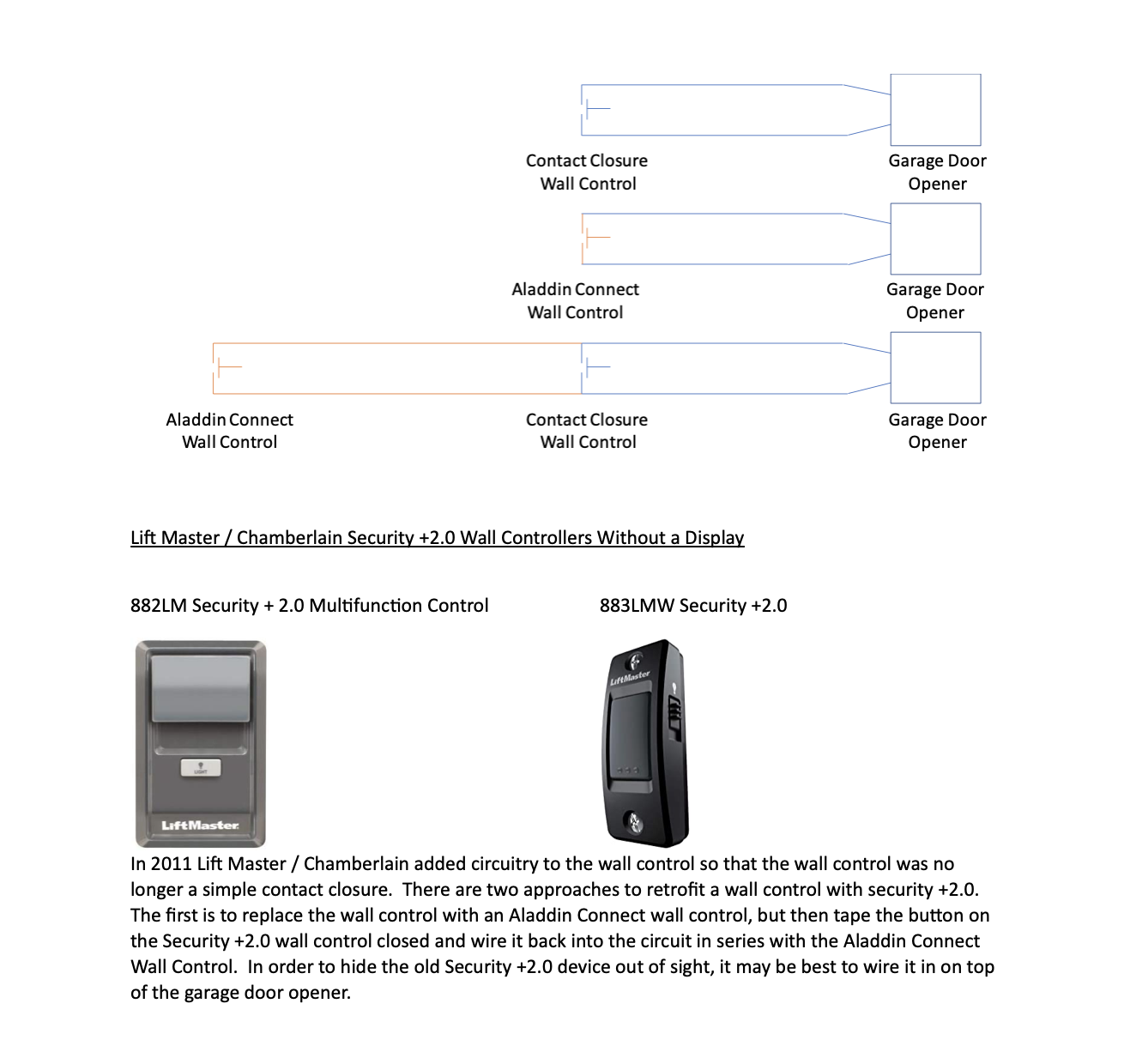

Screen Shot 2023-11-30 at 15.06.08.png

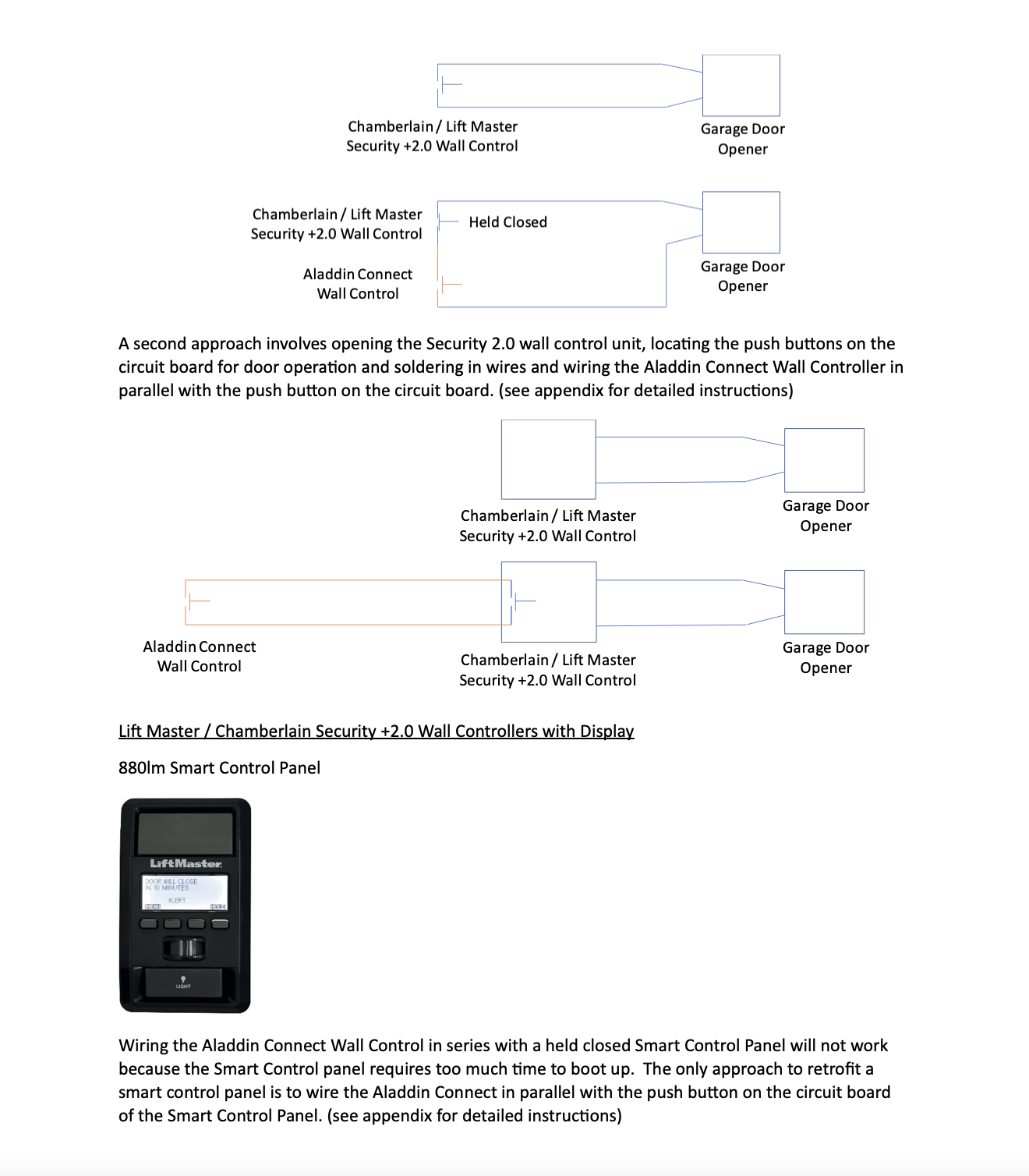

Screen Shot 2023-11-30 at 15.06.34.png

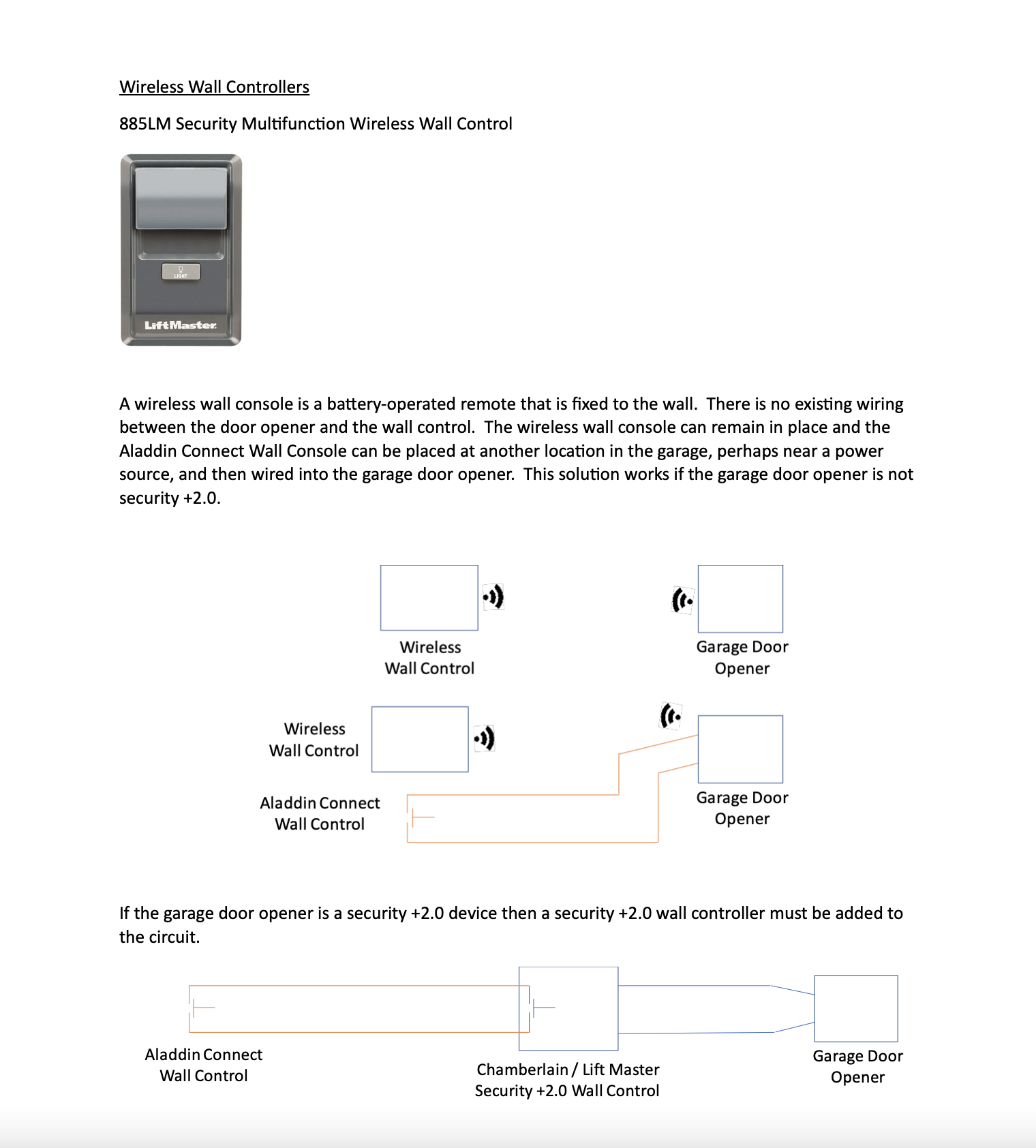

Screen Shot 2023-11-30 at 15.11.18.png

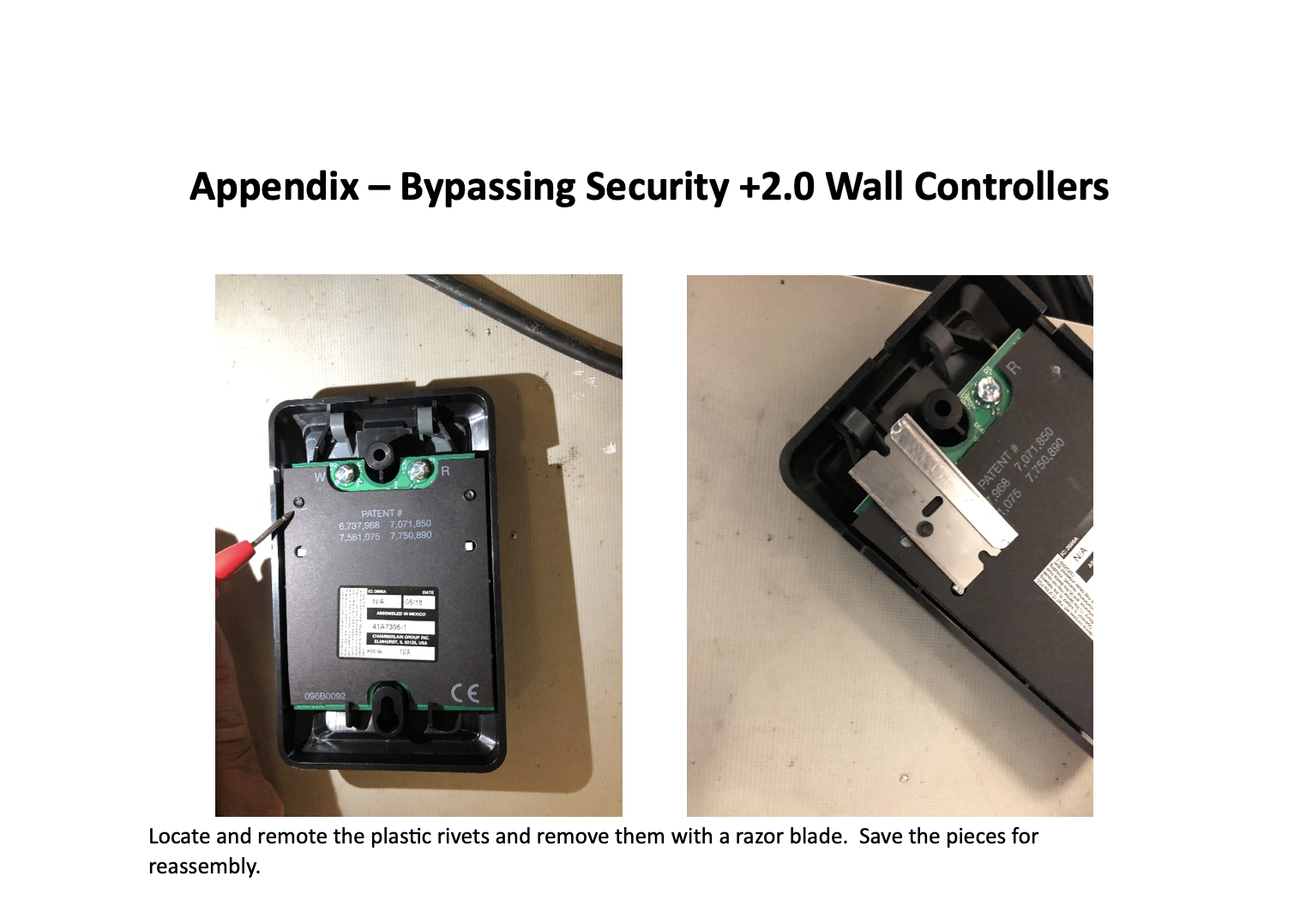

Screen Shot 2023-11-30 at 15.11.44.png

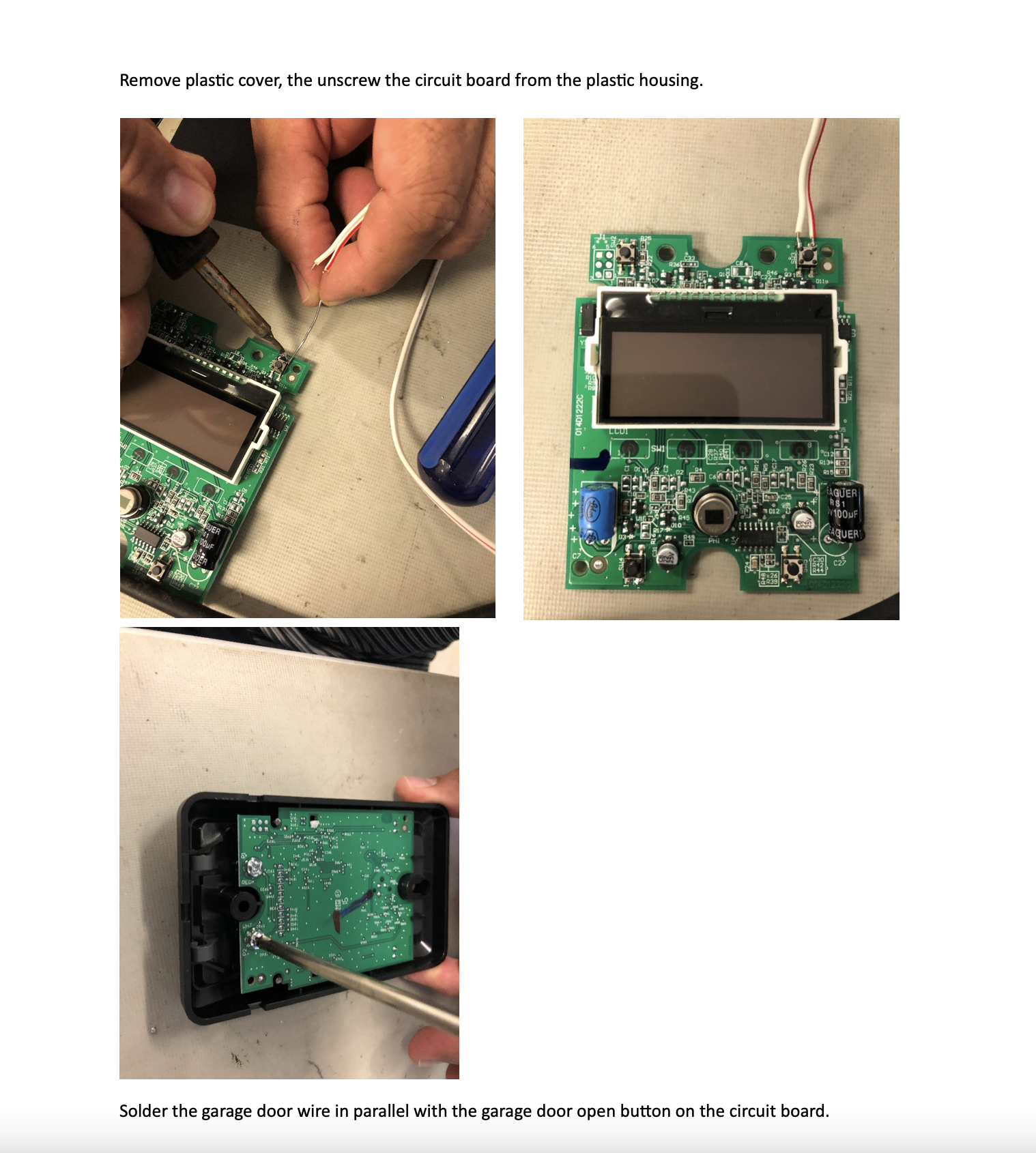

Screen Shot 2023-11-30 at 15.12.03.png

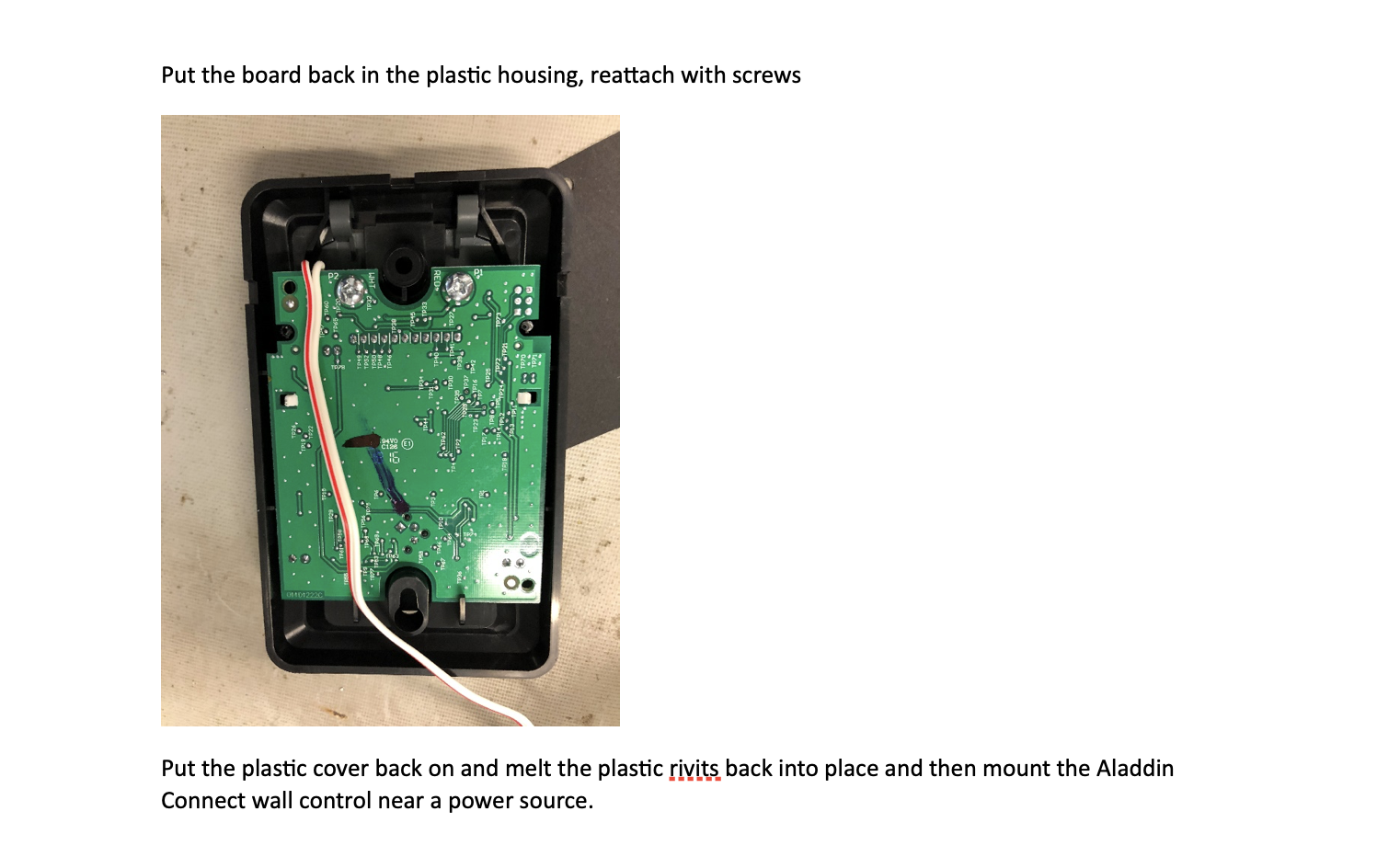

Screen Shot 2023-11-30 at 15.12.27.pngScreen Shot 2023-11-30 at 15.12.47.png
